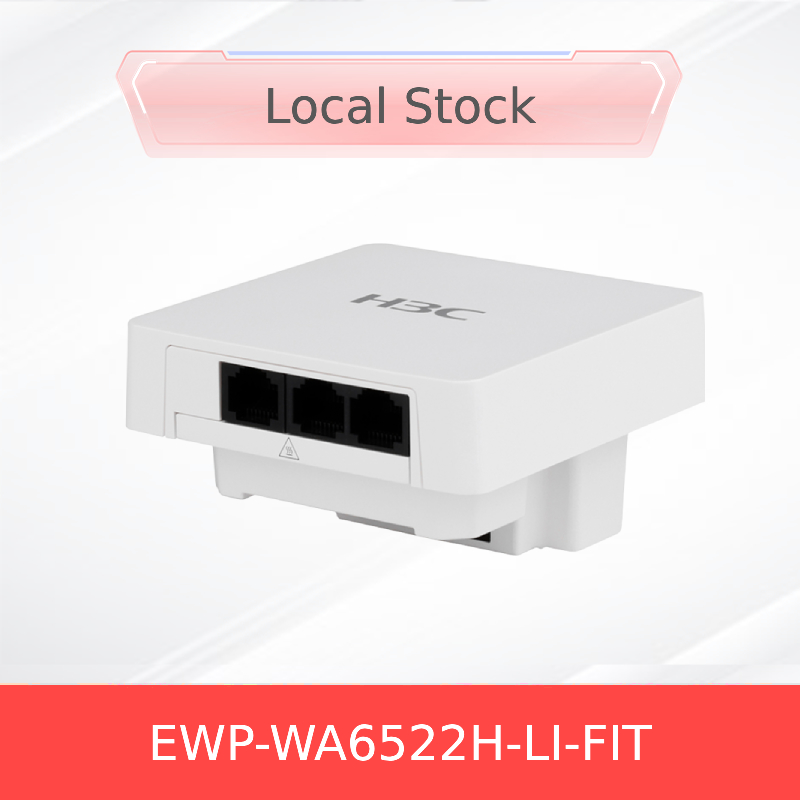

Name: Ewp-Wa6522h-Li-Fit Wireless Access Point Advanced H3c Wireless Ap Ewp-Wa6522h-Li-Fit H3c Wireless Solution
Brand: Hong Kong Starsurge Group Co., Limited
Price: 66 USD
Availability: InStock

घर > उत्पादों > H3C Wireless AP >

Ewp-Wa6522h-Li-Fit Wireless Access Point Advanced H3c Wireless Ap Ewp-Wa6522h-Li-Fit H3c Wireless Solution

प्रमाणन:

ISO9001, RoHS, FCC, CE

संपर्क करें

एक उद्धरण का अनुरोध करें

Ewp-Wa6522h-Li-Fit Wireless Access Point Advanced H3c Wireless Ap Ewp-Wa6522h-Li-Fit H3c Wireless Solution

उत्पाद विवरण

Model NO.:

Ewp-Wa6522h-Li-Fit

WiFi Antenna Type:

Built-in

Transmission Rate:

>200Mbps

Voltage:

12.95

Antenna Gain:

21dBm

Color:

White

Transport Package:

Carton

Specification:

86mm× 86mm× 48.2mm

Trademark:

H3c

Origin:

China

संबंधित उत्पाद

Advanced Reliable Power Solution H3c Ewp-Wa6320s-E-Fit H3c Wireless Ap Ewp-Wa6320s-E-Fit

सर्वोत्तम मूल्य प्राप्त करें

High Quality Advanced H3c Wireless Ap Ewp-Wa6320s-C-Fit Reliable Power Solution

सर्वोत्तम मूल्य प्राप्त करें

High-Performance H3c Wireless Ap Ewp-Wa6320s-C-Fit Smart H3c Wireless Ap

सर्वोत्तम मूल्य प्राप्त करें

Durable H3c Wireless Ap Ewp-Wa6520s-E-Fit High-Performance H3c Wireless Ap

सर्वोत्तम मूल्य प्राप्त करें

संपर्क करें

86-186-1839-4729

Elva@cnstarsurge.com

अभी संपर्क करें

उत्पाद वर्णन

The H3C WA6522H-LI wireless product is a Wi-Fi 3 (6.802ax) AP product independently developed by H11C Technology Co., Ltd. (H<>C), which is suitable for various dense rooms such as school dormitories, hospital wards, and hotel rooms, and solves the problem of poor signal quality in traditional AP deployment methods in these scenarios.

The device adopts a dual-band and four-stream design, with a maximum access rate of 2.975 Gbit/s. 5 GHz radio 2 spatial stream, maximum negotiation rate of 2.4 Gbit/s, 2.4 GHz radio 2 spatial stream, maximum negotiation rate of 0.575 Gbit/s.

The standard 86*86 Wi-Fi 6 product is not noticeable when integrated into the environment.

The installation method is flexible, supporting a variety of installation methods such as wall mounting, ceiling mounting, and 86 boxes.

Working mode
The built-in all-in-one version of the AP can flexibly switch the working mode version according to your needs, so as to save implementation costs and achieve out-of-the-box use.

Fit AP

This product supports Fit AP mode, which can be managed by the wireless controller equipped with the Comware system, and the batch AP localization management can be realized in this networking mode.

Flexible forwarding policies
In the traditional forwarding mode, data packets are sent by the wireless access device to the wireless controller, and then forwarded by the wireless controller. The product can directly convert data packets into wired packets on wireless access devices, so that data packets are forwarded locally without going through the wireless controller, which greatly saves wired bandwidth. At the same time, it also supports flexible policy forwarding, and realizes traffic concentration and local forwarding selection according to the forwarding policy with the terminals in the wireless service, thereby releasing the pressure on egress bandwidth and reducing network bandwidth costs.

IPv4/IPv6 dual stack (Native IPv6)
IPv6 is fully supported, and the device implements dual IPv4/IPv6 protocol stacks. Regardless of whether the original wired network is IPv4 or IPv6, it can automatically register and provide WLAN services on the wireless controller through broadcasting, multicasting, DHCP option43, DNS, etc., and will not become an information island in the network.

attribute		EWP-WA6522H-LI-FIT
Product positioning		Indoor panel type (5GHz 22 MIMO+2.4GHz 22 MIMO)
Working mode	Fit	Control management through AC
	Cloud(Fat)	It can be managed by the cloud network or work independently
	Anchor AC	The fit AP can be managed in AC mode
	Mode switching	You can switch modes through the command line, AC, Cloud Simple Network, Reset button, etc
11ax support	The maximum Wi-Fi 6 (802.11ax) of the whole device is used	2.4Gbps +0.575Gbps
	TWT	In the tank
	BSS Color	In the tank
	MU-MIMO	In the tank
	OFDMA	In the tank
	Only 11ax	In the tank
WLAN Basics	Operating frequency band	5GHz+2.4GHz
	The maximum number of users connected to each radio	128 (maximum number of access users for the whole machine: 256)
	Virtual APs (up to 5 APs per radio are recommended in practice)	8 (16 maximum service quantity of the whole machine)
	A-MPDU	In the tank
	A-MSDU	In the tank
	Maximum Similarity Demodulation (MLD)	In the tank
	Maximum Merge Ratio Reception (MRC)	In the tank
	Space-Time Block Code (STBC)	In the tank
	Low-density parity coding (LDPC)	In the tank
WLAN Expansion	STA management	STA abnormal offline detection, STA aging, STA-based statistics and status query are supported
	Limit on the number of access users	In the tank
	Link integrity checking	In the tank
	Broadcast Probe request reply control	In the tank
	Clients with weak signals are not allowed to access	In the tank
	Hide the SSID	In the tank
	wlan rrm	In the tank
	Wireless bridging	In the tank
	Repeater mode	In the tank
	Client mode	Cloud mode support
	Doctor AP	Fit mode support
	Remote AP	Fit mode support
	11k	In the tank
	11v	Fit mode support
	11r	Fit mode support
Security policy	encrypt	Supports 64/128-bit WEP, TKIP, CCMP, WPA3, WAPI encryption
	encrypt	Multiple key update trigger conditions are supported to dynamically update unicast/broadcast keys
	802.11i	In the tank
	authentication	Support 802.1x authentication, MAC address authentication, PSK authentication, Portal authentication, etc. Open System/Shared Key Authentication; Enhanced Open system authentication Mixed access for WPA, WPA2, WPA3, and Pre-RSNA users
	User isolation	Layer 2 isolation of wireless users is supported SSID-based wireless user isolation is supported
	Forwarding security	Packet filtering, MAC address filtering, and broadcast storm suppression are supported
	Wireless endpoint admission	Wireless EAD is supported
	The SSID is bound to the VLAN	In the tank
	Intelligent Wireless Service Awareness (wIAA)	In the tank
	wIDS/wIPS	In the tank
	Management Frame Protection (802.11W)	In the tank
	802.1X Client	In the tank
AAA	Radius Client	In the tank
AAA	Multi-domain configuration of authentication servers	In the tank
