Model NO.: 1930 (JL684A) Transmission Rate: 10/100/1000Mbps
Ports: ≦8 Operating System: Aruba OS
L3: WLAN/STP/Lldp/Lacp Poe: Hpe Smart Rate
Transport Package: Carton Specification: 449× 441 × 44mm
Trademark: Extreme Origin: China

उत्पाद विवरण

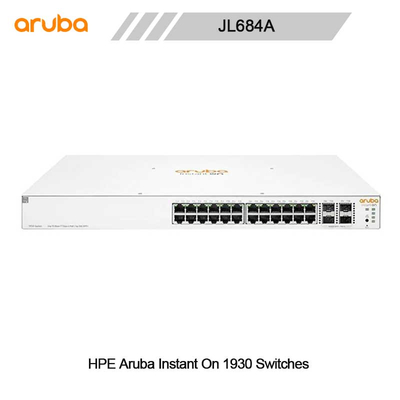

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684A)
The HPE Networking Instant On Switch 1930 (JL684A) is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
The HPE Networking Instant On Switch 1930 (JL684A) features easy-to-use, outof-the-box, plug-and-play deployment.The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+). The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity. The HPE Networking Instant On Switch 1930 (JL684A) can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
The HPE Networking Instant On Switch 1930 (JL680A) supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation. Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access. Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks. Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Product Number
JL684A
Differentiator
Ports: 24 Gigabit copper Uplink ports: 4 SFP+ 1/10 GbE ports
Ports
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports
Memory and processor
ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Throughput
95.23 Mpps, maximum
Switching capacity
128 Gbps
PoE capability
370 W Class 4 PoE
Management features
Instant On Portal, Web browser, SNMP Manager
Input voltage
100 - 240 VAC
Power consumption
22.6W maximum, 9.3W idle
Product dimensions
17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm) (1U height)
Weight
0.82 kg
